Gitlab 飞书机器人通知配置

发表于
作者 Zpekii
7 分钟阅读

前置需要:

  • 需要拥有仓库的访问和管理权限(至少是Maintainer维护者角色的权限)
  • 需要有一个飞书群的机器人

访问 Gitlab 仓库 Webhooks 配置页面

做左侧侧边栏展开Settings（如果没有该选项，则说明当前账号权限不足, 需要先获取权限)

image-20260313140148805

创建一个新的 webhook

image-20260313140345376

填写机器人 webhook 地址

image-20260313140536664

webhook 地址在飞书群上创建机器人后，直接复制 webhook 地址:

image-20260313140638882

勾选需要触发通知的内容

image-20260313140814733

填写自定义消息模板

PS: 飞书有自己的消息模板要求，所以需要进行单独配置

以飞书卡片交互消息通知类型为例(可直接拷贝套用):

飞书文档: 自定义机器人使用指南 - 开发指南 - 开发文档 - 飞书开放平台

gitlab 填充字段内容格式： （与获取 json 内容类似) 如 获取合并请求源分支；

(合并请求通知有哪些字段可以参考下方提供的示例内容，也可以直接访问 gitlab 文档具体查看: [Webhook eventsGitLab Docs](https://docs.gitlab.com/18.8/user/project/integrations/webhook_events/) ）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87

{
  "msg_type": "interactive",
  "card": {
    "schema": "2.0",
    "config": { "update_multi": true },
    "header": {
      "title": { "tag": "plain_text", "content": "🔀 Merge Request ! | 状态:" },
      "subtitle": { "tag": "plain_text", "content": " · " },
      "template": "blue",
      "padding": "12px 12px 12px 12px"
    },
    "body": {
      "direction": "vertical",
      "padding": "12px 12px 12px 12px",
      "elements": [
        {
          "tag": "markdown",
          "content": "**[]()**\n`` → ``",
          "text_size": "heading"
        },
        {
          "tag": "markdown",
          "content": "",
          "text_size": "normal"
        },
        { "tag": "hr"},
        {
          "tag": "column_set",
          "flex_mode": "none",
          "horizontal_spacing": "16px",
          "columns": [
            {
              "tag": "column",
              "width": "weighted",
              "weight": 1,
              "elements": [
                { "tag": "markdown", "content": "**发起人**\n@" }
              ]
            },
            {
              "tag": "column",
              "width": "weighted",
              "weight": 1,
              "elements": [
                { "tag": "markdown", "content": "**合并状态**\n" }
              ]
            }
          ]
        },
        { "tag": "hr" },
        {
          "tag": "column_set",
          "flex_mode": "none",
          "horizontal_spacing": "8px",
          "columns": [
            {
              "tag": "column",
              "width": "auto",
              "elements": [
                {
                  "tag": "button",
                  "text": { "tag": "plain_text", "content": "查看 MR" },
                  "type": "primary",
                  "size": "medium",
                  "behaviors": [{ "type": "open_url", "default_url": "" }]
                }
              ]
            },
            {
              "tag": "column",
              "width": "auto",
              "elements": [
                {
                  "tag": "button",
                  "text": { "tag": "plain_text", "content": "查看项目" },
                  "type": "default",
                  "size": "medium",
                  "behaviors": [{ "type": "open_url", "default_url": "" }]
                }
              ]
            }
          ]
        }
      ]
    }
  }
}

如果需要额外添加 Gitlab Merge Event 的消息，可参考以下的字段内容(注意: gitlab 不支持渲染数组内容，即无法正常将 assignees 或 reviewers 渲染成一个数组字符串，更无法读取数组里面的元素，类似 assignees[0] 或 assignees.0.name):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202

{
  "object_kind": "merge_request",
  "event_type": "merge_request",
  "user": {
    "id": 1,
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon",
    "email": "admin@example.com"
  },
  "project": {
    "id": 1,
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlabhq/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"git@example.com:gitlabhq/gitlab-test.git",
    "git_http_url":"http://example.com/gitlabhq/gitlab-test.git",
    "namespace":"GitlabHQ",
    "visibility_level":20,
    "path_with_namespace":"gitlabhq/gitlab-test",
    "default_branch":"master",
    "ci_config_path":"",
    "homepage":"http://example.com/gitlabhq/gitlab-test",
    "url":"http://example.com/gitlabhq/gitlab-test.git",
    "ssh_url":"git@example.com:gitlabhq/gitlab-test.git",
    "http_url":"http://example.com/gitlabhq/gitlab-test.git"
  },
  "repository": {
    "name": "Gitlab Test",
    "url": "http://example.com/gitlabhq/gitlab-test.git",
    "description": "Aut reprehenderit ut est.",
    "homepage": "http://example.com/gitlabhq/gitlab-test"
  },
  "object_attributes": {
    "id": 99,
    "iid": 1,
    "target_branch": "master",
    "source_branch": "ms-viewport",
    "source_project_id": 14,
    "author_id": 51,
    "assignee_ids": [6],
    "assignee_id": 6,
    "reviewer_ids": [6],
    "title": "MS-Viewport",
    "created_at": "2013-12-03T17:23:34Z",
    "updated_at": "2013-12-03T17:23:34Z",
    "last_edited_at": "2013-12-03T17:23:34Z",
    "last_edited_by_id": 1,
    "milestone_id": null,
    "state_id": 1,
    "state": "opened",
    "blocking_discussions_resolved": true,
    "work_in_progress": false,
    "draft": false,
    "first_contribution": true,
    "merge_status": "unchecked",
    "target_project_id": 14,
    "description": "",
    "prepared_at": "2013-12-03T19:23:34Z",
    "total_time_spent": 1800,
    "time_change": 30,
    "human_total_time_spent": "30m",
    "human_time_change": "30s",
    "human_time_estimate": "30m",
    "url": "http://example.com/diaspora/merge_requests/1",
    "source": {
      "name":"Awesome Project",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/awesome_space/awesome_project",
      "avatar_url":null,
      "git_ssh_url":"git@example.com:awesome_space/awesome_project.git",
      "git_http_url":"http://example.com/awesome_space/awesome_project.git",
      "namespace":"Awesome Space",
      "visibility_level":20,
      "path_with_namespace":"awesome_space/awesome_project",
      "default_branch":"master",
      "homepage":"http://example.com/awesome_space/awesome_project",
      "url":"http://example.com/awesome_space/awesome_project.git",
      "ssh_url":"git@example.com:awesome_space/awesome_project.git",
      "http_url":"http://example.com/awesome_space/awesome_project.git"
    },
    "target": {
      "name":"Awesome Project",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/awesome_space/awesome_project",
      "avatar_url":null,
      "git_ssh_url":"git@example.com:awesome_space/awesome_project.git",
      "git_http_url":"http://example.com/awesome_space/awesome_project.git",
      "namespace":"Awesome Space",
      "visibility_level":20,
      "path_with_namespace":"awesome_space/awesome_project",
      "default_branch":"master",
      "homepage":"http://example.com/awesome_space/awesome_project",
      "url":"http://example.com/awesome_space/awesome_project.git",
      "ssh_url":"git@example.com:awesome_space/awesome_project.git",
      "http_url":"http://example.com/awesome_space/awesome_project.git"
    },
    "last_commit": {
      "id": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "message": "fixed readme",
      "title": "Update file README.md",
      "timestamp": "2012-01-03T23:36:29+02:00",
      "url": "http://example.com/awesome_space/awesome_project/commits/da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "author": {
        "name": "GitLab dev user",
        "email": "gitlabdev@dv6700.(none)"
      }
    },
    "labels": [{
      "id": 206,
      "title": "API",
      "color": "#ffffff",
      "project_id": 14,
      "created_at": "2013-12-03T17:15:43Z",
      "updated_at": "2013-12-03T17:15:43Z",
      "template": false,
      "description": "API related issues",
      "type": "ProjectLabel",
      "group_id": 41
    }],
    "action": "open",
    "detailed_merge_status": "mergeable"
  },
  "labels": [{
    "id": 206,
    "title": "API",
    "color": "#ffffff",
    "project_id": 14,
    "created_at": "2013-12-03T17:15:43Z",
    "updated_at": "2013-12-03T17:15:43Z",
    "template": false,
    "description": "API related issues",
    "type": "ProjectLabel",
    "group_id": 41
  }],
  "changes": {
    "updated_by_id": {
      "previous": null,
      "current": 1
    },
    "draft": {
      "previous": true,
      "current": false
    },
    "updated_at": {
      "previous": "2017-09-15 16:50:55 UTC",
      "current":"2017-09-15 16:52:00 UTC"
    },
    "labels": {
      "previous": [{
        "id": 206,
        "title": "API",
        "color": "#ffffff",
        "project_id": 14,
        "created_at": "2013-12-03T17:15:43Z",
        "updated_at": "2013-12-03T17:15:43Z",
        "template": false,
        "description": "API related issues",
        "type": "ProjectLabel",
        "group_id": 41
      }],
      "current": [{
        "id": 205,
        "title": "Platform",
        "color": "#123123",
        "project_id": 14,
        "created_at": "2013-12-03T17:15:43Z",
        "updated_at": "2013-12-03T17:15:43Z",
        "template": false,
        "description": "Platform related issues",
        "type": "ProjectLabel",
        "group_id": 41
      }]
    },
    "last_edited_at": {
      "previous": null,
      "current": "2023-03-15 00:00:10 UTC"
    },
    "last_edited_by_id": {
      "previous": null,
      "current": 3278533
    }
  },
  "assignees": [
    {
      "id": 6,
      "name": "User1",
      "username": "user1",
      "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
    }
  ],
  "reviewers": [
    {
      "id": 6,
      "name": "User1",
      "username": "user1",
      "state": "unreviewed",
      "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
    }
  ]
}

image-20260313142413601

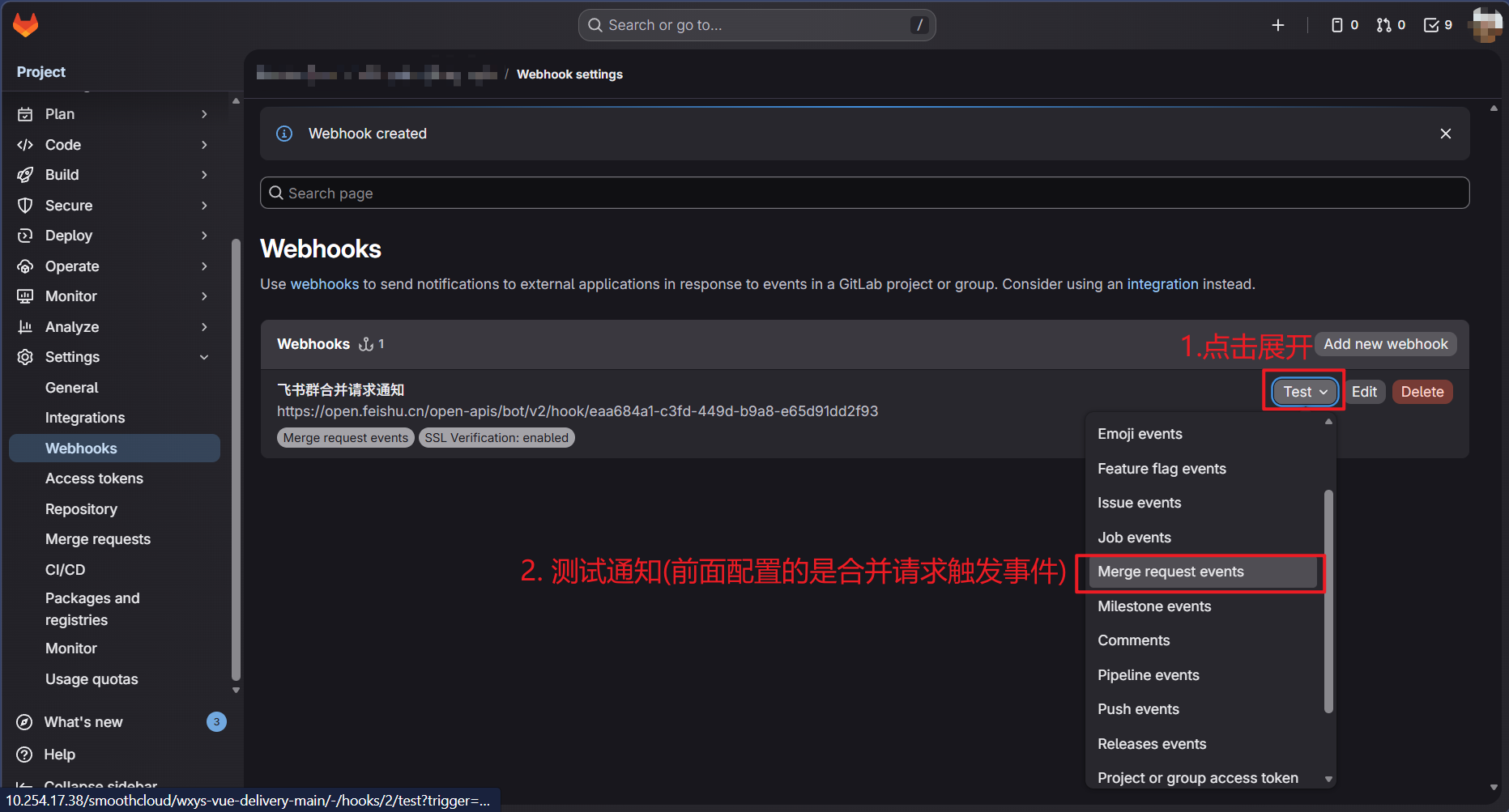

测试通知

image-20260313142856243

配置通知过滤

在飞书群机器人上设置 自定义关键词， 这里配置只允许 open 的合并请求通知

image-20260313142957056
